import numpy as np
import matplotlib.pyplot as plt
from utils import *
import copy
import math

%matplotlib inline

# load dataset
X_train, y_train = load_data("data/ex2data1.txt")

print("First five elements in X_train are:\n", X_train[:5])
print("Type of X_train:",type(X_train))

print("First five elements in y_train are:\n", y_train[:5])
print("Type of y_train:",type(y_train))

print ('The shape of X_train is: ' + str(X_train.shape))
print ('The shape of y_train is: ' + str(y_train.shape))
print ('We have m = %d training examples' % (len(y_train)))

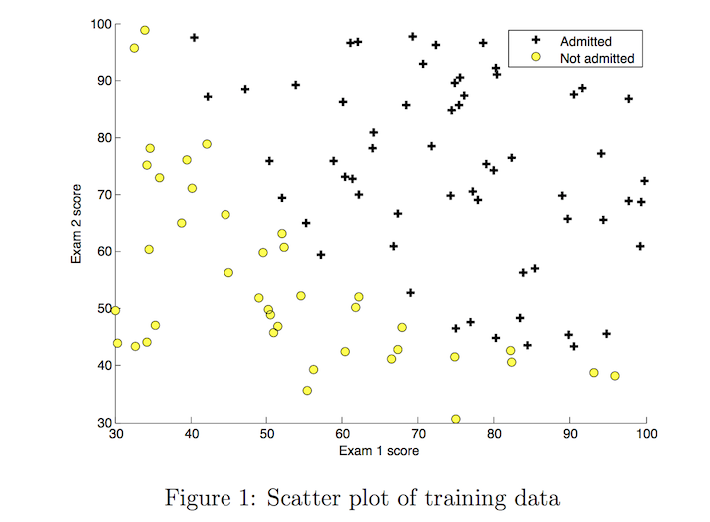

# Plot examples
plot_data(X_train, y_train[:], pos_label="Admitted", neg_label="Not admitted")

# Set the y-axis label
plt.ylabel('Exam 2 score')
# Set the x-axis label
plt.xlabel('Exam 1 score')
plt.legend(loc="upper right")
plt.show()

# UNQ_C1
# GRADED FUNCTION: sigmoid

def sigmoid(z):
    """
    Compute the sigmoid of z

    Args:
        z (ndarray): A scalar, numpy array of any size.

    Returns:
        g (ndarray): sigmoid(z), with the same shape as z

    """

    ### START CODE HERE ###

    ### END SOLUTION ###

    return g

print ("sigmoid(0) = " + str(sigmoid(0)))

print ("sigmoid([ -1, 0, 1, 2]) = " + str(sigmoid(np.array([-1, 0, 1, 2]))))

# UNIT TESTS
from public_tests import *
sigmoid_test(sigmoid)

# UNQ_C2
# GRADED FUNCTION: compute_cost
def compute_cost(X, y, w, b, lambda_= 1):
    """
    Computes the cost over all examples
    Args:
      X : (ndarray Shape (m,n)) data, m examples by n features
      y : (array_like Shape (m,)) target value
      w : (array_like Shape (n,)) Values of parameters of the model
      b : scalar Values of bias parameter of the model
      lambda_: unused placeholder
    Returns:
      total_cost: (scalar)         cost
    """

    m, n = X.shape

    ### START CODE HERE ###

    ### END CODE HERE ###

    return total_cost

m, n = X_train.shape

# Compute and display cost with w initialized to zeroes
initial_w = np.zeros(n)
initial_b = 0.
cost = compute_cost(X_train, y_train, initial_w, initial_b)
print('Cost at initial w (zeros): {:.3f}'.format(cost))

# Compute and display cost with non-zero w
test_w = np.array([0.2, 0.2])
test_b = -24.
cost = compute_cost(X_train, y_train, test_w, test_b)

print('Cost at test w,b: {:.3f}'.format(cost))


# UNIT TESTS
compute_cost_test(compute_cost)

# UNQ_C3
# GRADED FUNCTION: compute_gradient
def compute_gradient(X, y, w, b, lambda_=None):
    """
    Computes the gradient for logistic regression

    Args:
      X : (ndarray Shape (m,n)) variable such as house size
      y : (array_like Shape (m,1)) actual value
      w : (array_like Shape (n,1)) values of parameters of the model
      b : (scalar)                 value of parameter of the model
      lambda_: unused placeholder.
    Returns
      dj_dw: (array_like Shape (n,1)) The gradient of the cost w.r.t. the parameters w.
      dj_db: (scalar)                The gradient of the cost w.r.t. the parameter b.
    """
    m, n = X.shape
    dj_dw = np.zeros(w.shape)
    dj_db = 0.

    ### START CODE HERE ###
    for i in range(m):
        z_wb = None
        for j in range(n):
            z_wb += None
        z_wb += None
        f_wb = None

        dj_db_i = None
        dj_db += None

        for j in range(n):
            dj_dw[j] = None

    dj_dw = None
    dj_db = None
    ### END CODE HERE ###


    return dj_db, dj_dw

def compute_gradient(X, y, w, b, lambda_=None):
        m, n = X.shape
        dj_dw = np.zeros(w.shape)
        dj_db = 0.

        ### START CODE HERE ###
        for i in range(m):
            # Calculate f_wb (exactly as you did in the compute_cost function above)
            f_wb =

            # Calculate the  gradient for b from this example
            dj_db_i = # Your code here to calculate the error

            # add that to dj_db
            dj_db += dj_db_i

            # get dj_dw for each attribute
            for j in range(n):
                # You code here to calculate the gradient from the i-th example for j-th attribute
                dj_dw_ij =
                dj_dw[j] += dj_dw_ij

        # divide dj_db and dj_dw by total number of examples
        dj_dw = dj_dw / m
        dj_db = dj_db / m
        ### END CODE HERE ###

        return dj_db, dj_dw

# Compute and display gradient with w initialized to zeroes
initial_w = np.zeros(n)
initial_b = 0.

dj_db, dj_dw = compute_gradient(X_train, y_train, initial_w, initial_b)
print(f'dj_db at initial w (zeros):{dj_db}' )
print(f'dj_dw at initial w (zeros):{dj_dw.tolist()}' )

# Compute and display cost and gradient with non-zero w
test_w = np.array([ 0.2, -0.5])
test_b = -24
dj_db, dj_dw  = compute_gradient(X_train, y_train, test_w, test_b)

print('dj_db at test_w:', dj_db)
print('dj_dw at test_w:', dj_dw.tolist())

# UNIT TESTS
compute_gradient_test(compute_gradient)

def gradient_descent(X, y, w_in, b_in, cost_function, gradient_function, alpha, num_iters, lambda_):
    """
    Performs batch gradient descent to learn theta. Updates theta by taking
    num_iters gradient steps with learning rate alpha

    Args:
      X :    (array_like Shape (m, n)
      y :    (array_like Shape (m,))
      w_in : (array_like Shape (n,))  Initial values of parameters of the model
      b_in : (scalar)                 Initial value of parameter of the model
      cost_function:                  function to compute cost
      alpha : (float)                 Learning rate
      num_iters : (int)               number of iterations to run gradient descent
      lambda_ (scalar, float)         regularization constant

    Returns:
      w : (array_like Shape (n,)) Updated values of parameters of the model after
          running gradient descent
      b : (scalar)                Updated value of parameter of the model after
          running gradient descent
    """

    # number of training examples
    m = len(X)

    # An array to store cost J and w's at each iteration primarily for graphing later
    J_history = []
    w_history = []

    for i in range(num_iters):

        # Calculate the gradient and update the parameters
        dj_db, dj_dw = gradient_function(X, y, w_in, b_in, lambda_)

        # Update Parameters using w, b, alpha and gradient
        w_in = w_in - alpha * dj_dw
        b_in = b_in - alpha * dj_db

        # Save cost J at each iteration
        if i<100000:      # prevent resource exhaustion
            cost =  cost_function(X, y, w_in, b_in, lambda_)
            J_history.append(cost)

        # Print cost every at intervals 10 times or as many iterations if < 10
        if i% math.ceil(num_iters/10) == 0 or i == (num_iters-1):
            w_history.append(w_in)
            print(f"Iteration {i:4}: Cost {float(J_history[-1]):8.2f}   ")

    return w_in, b_in, J_history, w_history #return w and J,w history for graphing

np.random.seed(1)
intial_w = 0.01 * (np.random.rand(2).reshape(-1,1) - 0.5)
initial_b = -8


# Some gradient descent settings
iterations = 10000
alpha = 0.001

w,b, J_history,_ = gradient_descent(X_train ,y_train, initial_w, initial_b,
                                   compute_cost, compute_gradient, alpha, iterations, 0)

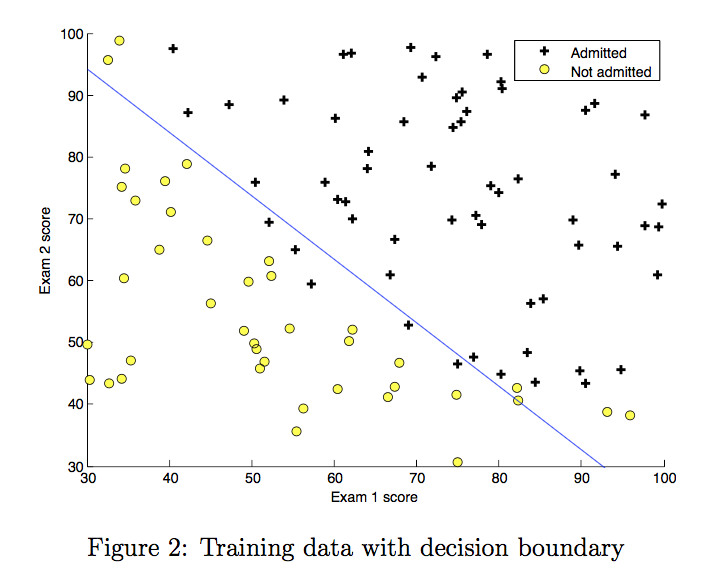

plot_decision_boundary(w, b, X_train, y_train)

# UNQ_C4
# GRADED FUNCTION: predict

def predict(X, w, b):
    """
    Predict whether the label is 0 or 1 using learned logistic
    regression parameters w

    Args:
    X : (ndarray Shape (m, n))
    w : (array_like Shape (n,))      Parameters of the model
    b : (scalar, float)              Parameter of the model

    Returns:
    p: (ndarray (m,1))
        The predictions for X using a threshold at 0.5
    """
    # number of training examples
    m, n = X.shape
    p = np.zeros(m)

    ### START CODE HERE ###
    # Loop over each example
    for i in range(m):
        z_wb = None
        # Loop over each feature
        for j in range(n):
            # Add the corresponding term to z_wb
            z_wb += None

        # Add bias term
        z_wb += None

        # Calculate the prediction for this example
        f_wb = None

        # Apply the threshold
        p[i] = None

    ### END CODE HERE ###
    return p

def predict(X, w, b):
        # number of training examples
        m, n = X.shape
        p = np.zeros(m)

        ### START CODE HERE ###
        # Loop over each example
        for i in range(m):

            # Calculate f_wb (exactly how you did it in the compute_cost function above)
            # using a couple of lines of code
            f_wb =

            # Calculate the prediction for that training example
            p[i] = # Your code here to calculate the prediction based on f_wb

        ### END CODE HERE ###
        return p

# Test your predict code
np.random.seed(1)
tmp_w = np.random.randn(2)
tmp_b = 0.3
tmp_X = np.random.randn(4, 2) - 0.5

tmp_p = predict(tmp_X, tmp_w, tmp_b)
print(f'Output of predict: shape {tmp_p.shape}, value {tmp_p}')

# UNIT TESTS
predict_test(predict)

#Compute accuracy on our training set
p = predict(X_train, w,b)
print('Train Accuracy: %f'%(np.mean(p == y_train) * 100))

# load dataset
X_train, y_train = load_data("data/ex2data2.txt")

# print X_train
print("X_train:", X_train[:5])
print("Type of X_train:",type(X_train))

# print y_train
print("y_train:", y_train[:5])
print("Type of y_train:",type(y_train))

print ('The shape of X_train is: ' + str(X_train.shape))
print ('The shape of y_train is: ' + str(y_train.shape))
print ('We have m = %d training examples' % (len(y_train)))

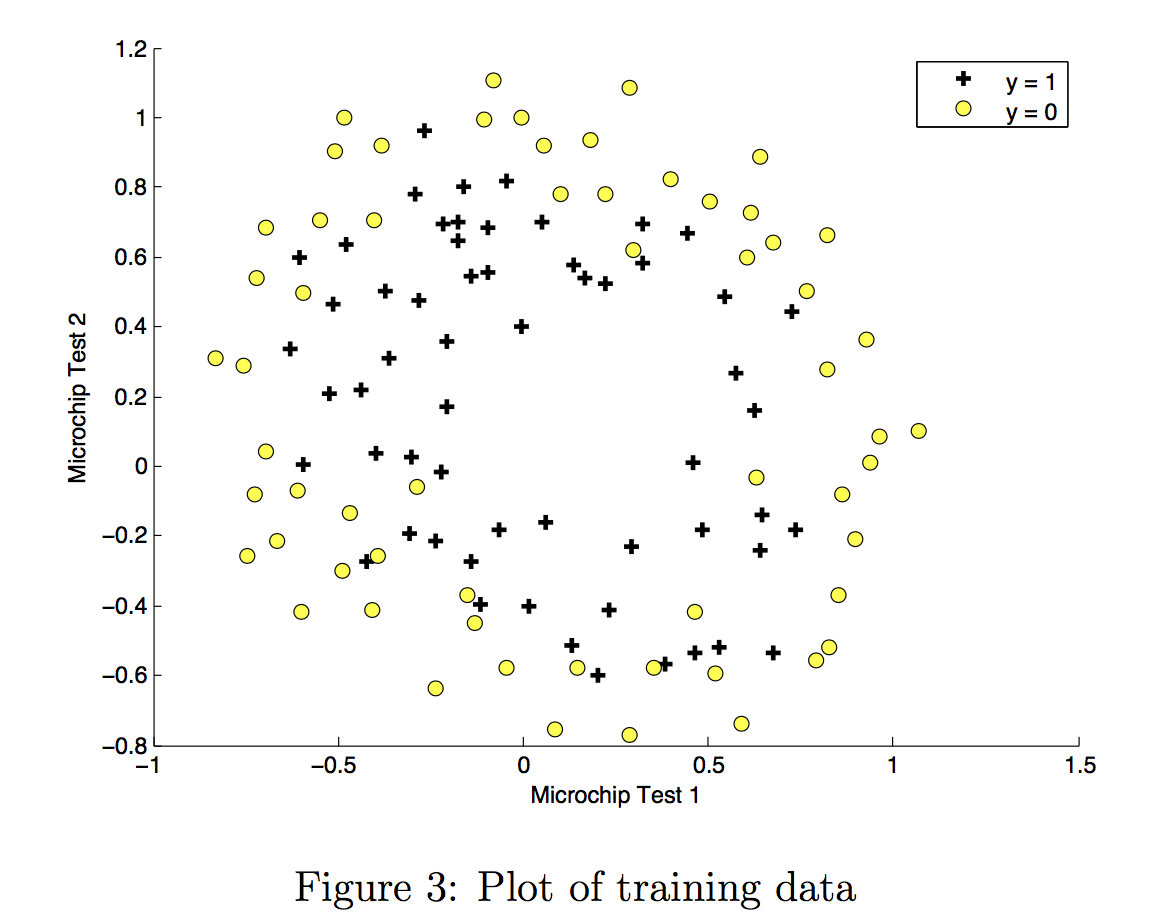

# Plot examples
plot_data(X_train, y_train[:], pos_label="Accepted", neg_label="Rejected")

# Set the y-axis label
plt.ylabel('Microchip Test 2')
# Set the x-axis label
plt.xlabel('Microchip Test 1')
plt.legend(loc="upper right")
plt.show()

print("Original shape of data:", X_train.shape)

mapped_X =  map_feature(X_train[:, 0], X_train[:, 1])
print("Shape after feature mapping:", mapped_X.shape)

print("X_train[0]:", X_train[0])
print("mapped X_train[0]:", mapped_X[0])

# UNQ_C5
def compute_cost_reg(X, y, w, b, lambda_ = 1):
    """
    Computes the cost over all examples
    Args:
      X : (array_like Shape (m,n)) data, m examples by n features
      y : (array_like Shape (m,)) target value
      w : (array_like Shape (n,)) Values of parameters of the model
      b : (array_like Shape (n,)) Values of bias parameter of the model
      lambda_ : (scalar, float)    Controls amount of regularization
    Returns:
      total_cost: (scalar)         cost
    """

    m, n = X.shape

    # Calls the compute_cost function that you implemented above
    cost_without_reg = compute_cost(X, y, w, b)

    # You need to calculate this value
    reg_cost = 0.

    ### START CODE HERE ###


    ### END CODE HERE ###

    # Add the regularization cost to get the total cost
    total_cost = cost_without_reg + (lambda_/(2 * m)) * reg_cost

    return total_cost

def compute_cost_reg(X, y, w, b, lambda_ = 1):

       m, n = X.shape

        # Calls the compute_cost function that you implemented above
        cost_without_reg = compute_cost(X, y, w, b)

        # You need to calculate this value
        reg_cost = 0.

        ### START CODE HERE ###
        for j in range(n):
            reg_cost_j = # Your code here to calculate the cost from w[j]
            reg_cost = reg_cost + reg_cost_j

        ### END CODE HERE ###

        # Add the regularization cost to get the total cost
        total_cost = cost_without_reg + (lambda_/(2 * m)) * reg_cost

    return total_cost

X_mapped = map_feature(X_train[:, 0], X_train[:, 1])
np.random.seed(1)
initial_w = np.random.rand(X_mapped.shape[1]) - 0.5
initial_b = 0.5
lambda_ = 0.5
cost = compute_cost_reg(X_mapped, y_train, initial_w, initial_b, lambda_)

print("Regularized cost :", cost)

# UNIT TEST
compute_cost_reg_test(compute_cost_reg)

# UNQ_C6
def compute_gradient_reg(X, y, w, b, lambda_ = 1):
    """
    Computes the gradient for linear regression

    Args:
      X : (ndarray Shape (m,n))   variable such as house size
      y : (ndarray Shape (m,))    actual value
      w : (ndarray Shape (n,))    values of parameters of the model
      b : (scalar)                value of parameter of the model
      lambda_ : (scalar,float)    regularization constant
    Returns
      dj_db: (scalar)             The gradient of the cost w.r.t. the parameter b.
      dj_dw: (ndarray Shape (n,)) The gradient of the cost w.r.t. the parameters w.

    """
    m, n = X.shape

    dj_db, dj_dw = compute_gradient(X, y, w, b)

    ### START CODE HERE ###


    ### END CODE HERE ###

    return dj_db, dj_dw

def compute_gradient_reg(X, y, w, b, lambda_ = 1):
    m, n = X.shape

    dj_db, dj_dw = compute_gradient(X, y, w, b)

    ### START CODE HERE ###
    # Loop over the elements of w
    for j in range(n):

        dj_dw_j_reg = # Your code here to calculate the regularization term for dj_dw[j]

        # Add the regularization term  to the correspoding element of dj_dw
        dj_dw[j] = dj_dw[j] + dj_dw_j_reg

    ### END CODE HERE ###

    return dj_db, dj_dw

X_mapped = map_feature(X_train[:, 0], X_train[:, 1])
np.random.seed(1)
initial_w  = np.random.rand(X_mapped.shape[1]) - 0.5
initial_b = 0.5

lambda_ = 0.5
dj_db, dj_dw = compute_gradient_reg(X_mapped, y_train, initial_w, initial_b, lambda_)

print(f"dj_db: {dj_db}", )
print(f"First few elements of regularized dj_dw:\n {dj_dw[:4].tolist()}", )

# UNIT TESTS
compute_gradient_reg_test(compute_gradient_reg)

# Initialize fitting parameters
np.random.seed(1)
initial_w = np.random.rand(X_mapped.shape[1])-0.5
initial_b = 1.

# Set regularization parameter lambda_ to 1 (you can try varying this)
lambda_ = 0.01;
# Some gradient descent settings
iterations = 10000
alpha = 0.01

w,b, J_history,_ = gradient_descent(X_mapped, y_train, initial_w, initial_b,
                                    compute_cost_reg, compute_gradient_reg,
                                    alpha, iterations, lambda_)

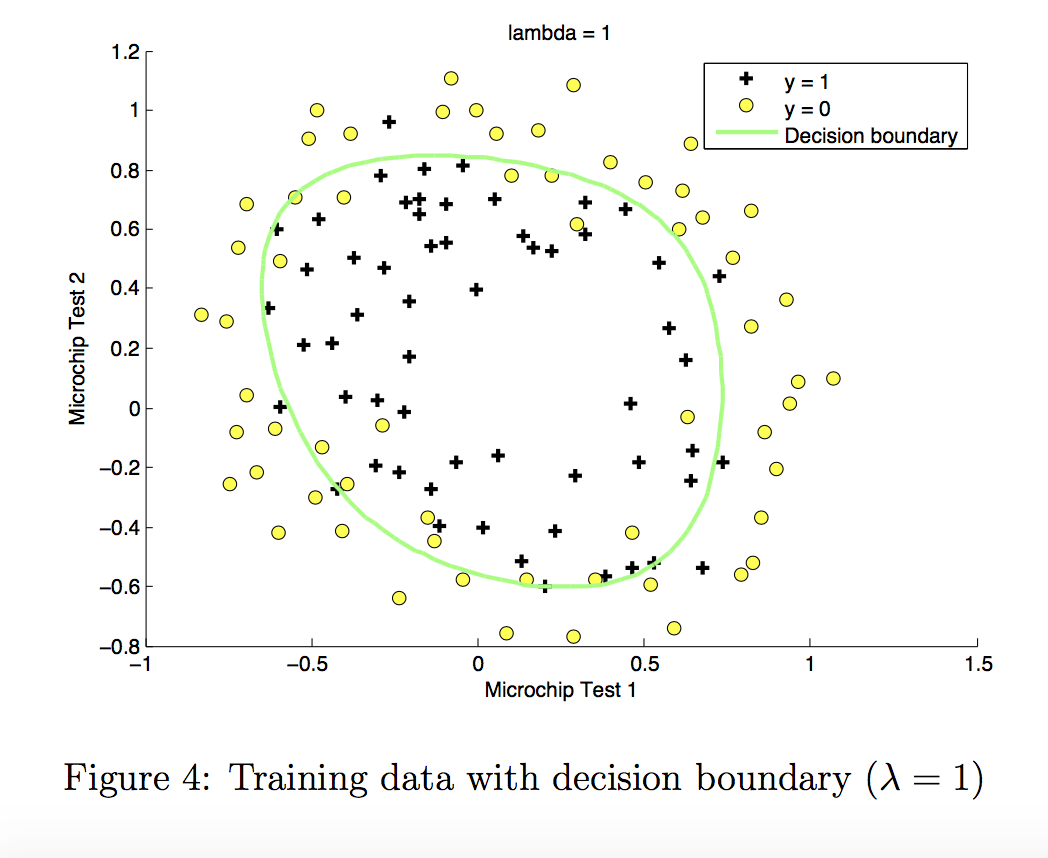

plot_decision_boundary(w, b, X_mapped, y_train)

#Compute accuracy on the training set
p = predict(X_mapped, w, b)

print('Train Accuracy: %f'%(np.mean(p == y_train) * 100))

dj_db at initial w (zeros)	-0.1
ddj_dw at initial w (zeros):	[-12.00921658929115, -11.262842205513591]

dj_db at initial w (zeros)	-0.5999999999991071
ddj_dw at initial w (zeros):	[-44.8313536178737957, -44.37384124953978]

Logistic Regression¶

Outline¶

1 - Packages¶

2 - Logistic Regression¶

2.1 Problem Statement¶

2.2 Loading and visualizing the data¶

View the variables¶

Check the dimensions of your variables¶

Visualize your data¶

2.3 Sigmoid function¶

Exercise 1¶

2.4 Cost function for logistic regression¶

Exercise 2¶

2.5 Gradient for logistic regression¶

Exercise 3¶

2.6 Learning parameters using gradient descent¶

2.7 Plotting the decision boundary¶

2.8 Evaluating logistic regression¶

Exercise 4¶

3 - Regularized Logistic Regression¶

3.1 Problem Statement¶

3.2 Loading and visualizing the data¶

View the variables¶

Check the dimensions of your variables¶

Visualize your data¶

3.3 Feature mapping¶

3.4 Cost function for regularized logistic regression¶

Exercise 5¶

3.5 Gradient for regularized logistic regression¶

Exercise 6¶

3.6 Learning parameters using gradient descent¶

3.7 Plotting the decision boundary¶

3.8 Evaluating regularized logistic regression model¶
